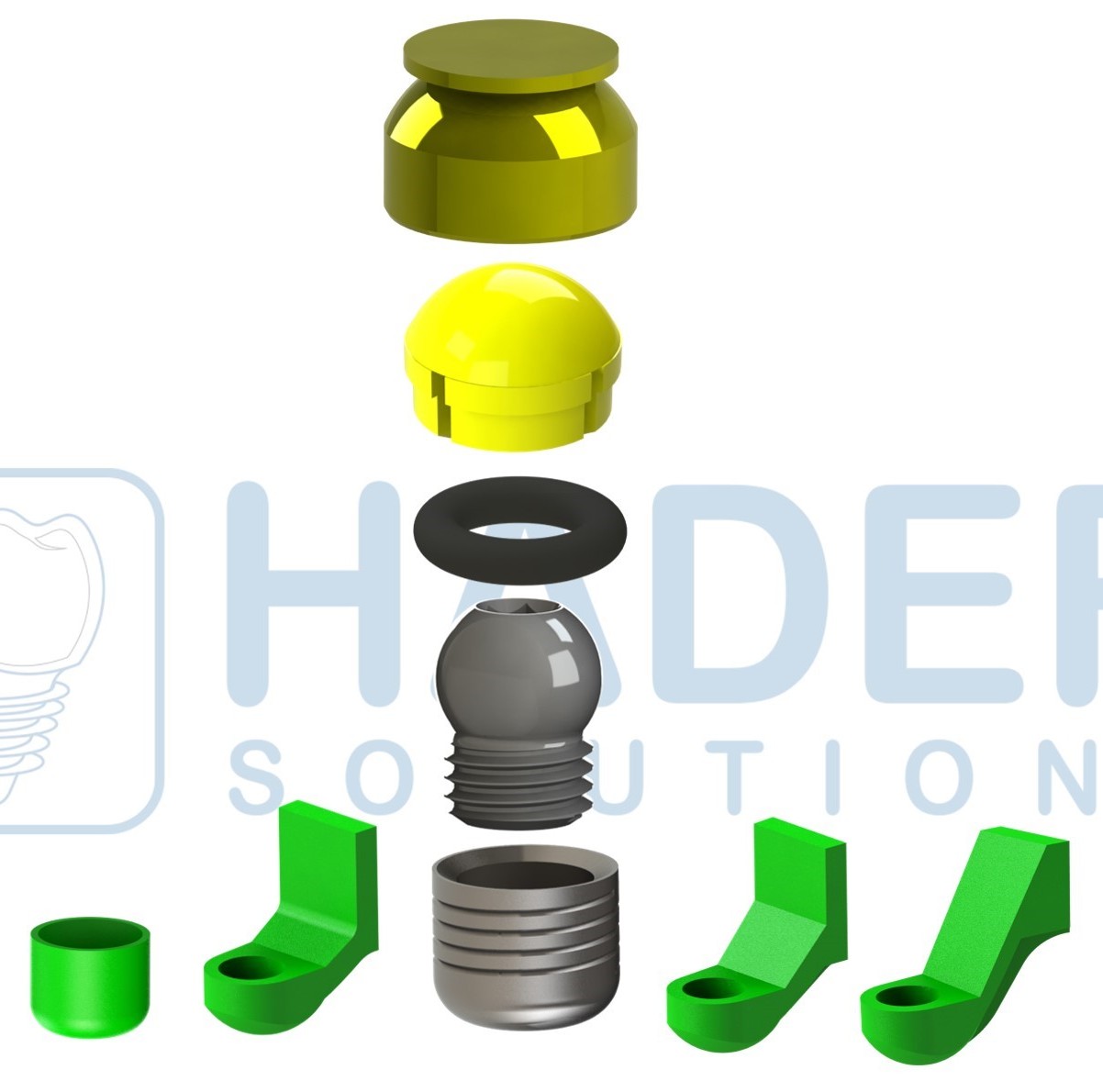

Hader CX parts examples
Design How You Want It.
The Hader VX and Hader Bar System is the most popular and versatile bar attachment in the world as it is low profile, provides secure retention options, and is simple to service!

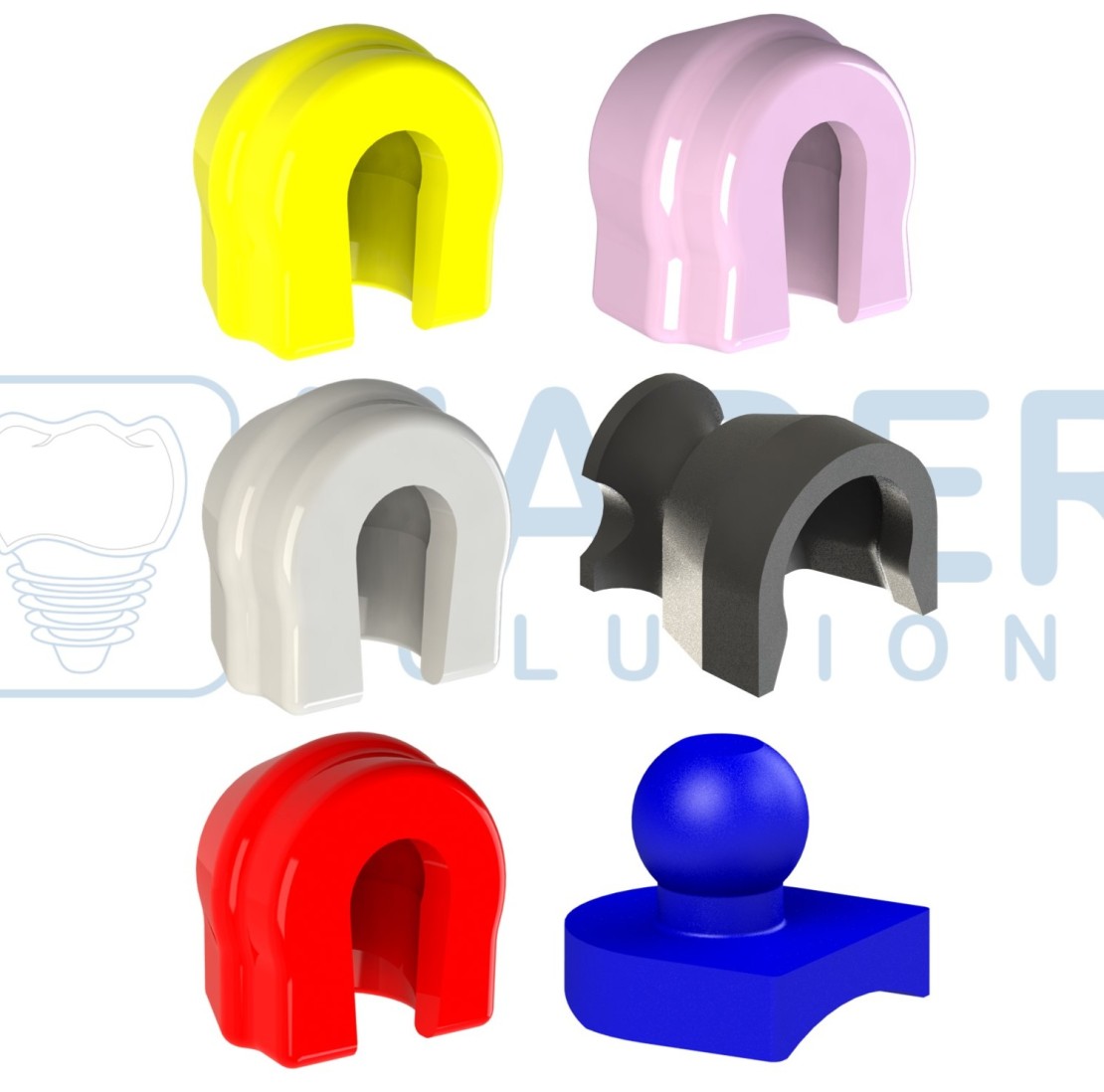

three different retention levels available:
- Yellow Standard Retention
- White Reduced Retention
- Red Increased Retention

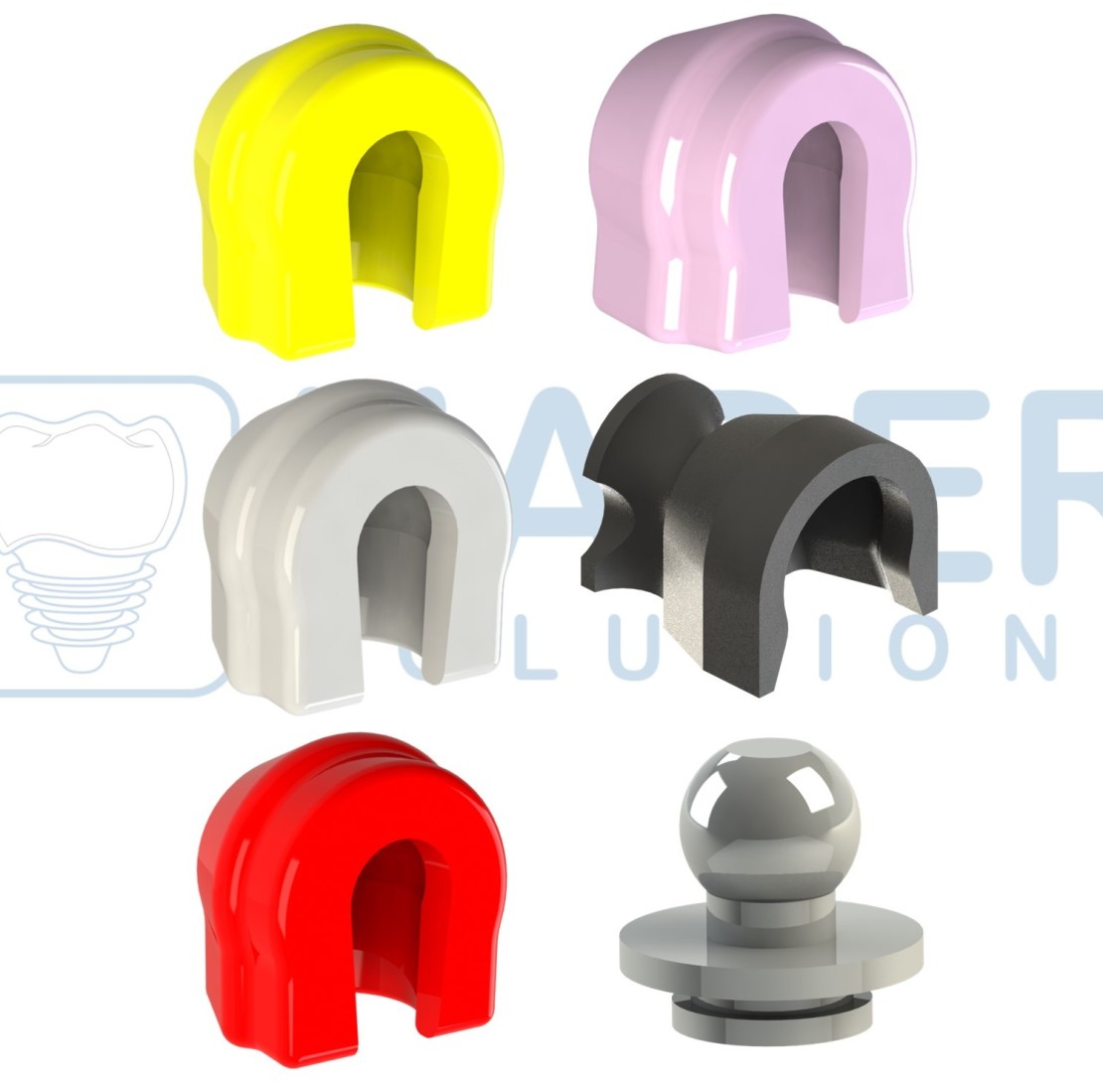

Sagittal ball attachment with segmented female for partial dentures and implant bar applications. The replaceable plastic female in three retention levels is incorporated directly into the framework.
The male is available in plastic and cast in a hard alloy, in prefabricated metal and cast to with any alloy, or as a threaded male with a special cast on base ring.
The “clipping” or flexing of the rigid female around the height of contour of the sphere allows the female 35% more retention area contact than previous designs of a sagittal spherical attachment.
Hader SX is available in two ball sizes:
- Mini 1.7 mm and Standard 2.2 mm.
Space Requirements for each ball size are:
- Mini 1.7 mm: 3.1mm vertical, 3.1mm diameter
- Standard 2.2 mm: 4.1mm vertical, 4.2mm diameter
